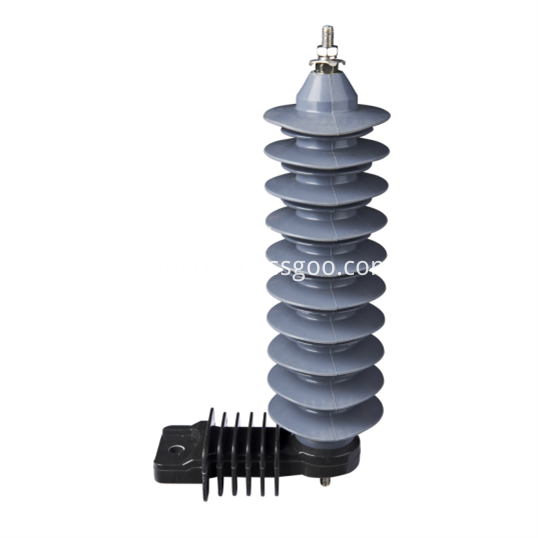

33kv Surge Arrester Polymer Arrester (YH10W-33KV)

Basic Info

Model No.: YH10W-33KV

Product Description

33kv surge arrester is designed for trouble-free power distribution. Polymer lightning arrester insulator protect transformers, switchgear and other equipment from switching and lightning surges. Transformer surge arrester meet or exceed all requirements of the latest IEC standards and can be selected to match the range of pollution and energy requirements. It should be installed in parallel between the line and ground to the transformer or cable termination or other object to be protected. Compared with arresters made of ceramic materials, polymer lightning protection devices can be widely used in medium and high voltage power grids in coastal and heavily polluted areas.

Features

1. Small volume and light weight

2. Protecting the shell body from breaking up when the pressure from thermal shock released

3. Easy to tell if the application still work due to its carbonization when shell body flashs over

4. Better performance in high contamination areas

5. Good sealing performance

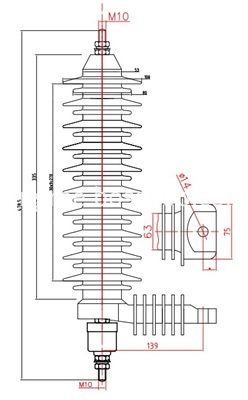

MAIN DIMENSIONS AND STANDARD PARTICULARS
Type YH10W-33KV
Rated Voltage,KV 33
Norminal Discharge Current,KA 10
Max Continuous Operating Voltage,KA 26.8
Residual Voltage Steep current,KV 104.5
Residual Voltage Switching Surge,KV 84.7
Residual Voltage Lightning Impulse,KV 99
4/10μs high current impulse,KA 100
Creepage Distance,MM 900
Weight,KG 3.05

arrester arrester YH10W-33KV
