IEC 60502-1 for 0.6/1 kV COPPER CONDUCTORS, PVC INSULATED, PVC SHEATHED

Product Description


IEC 60502-1 for 0.6/1 kV COPPER CONDUCTORS, PVC INSULATED, PVC SHEATHED Control Cable

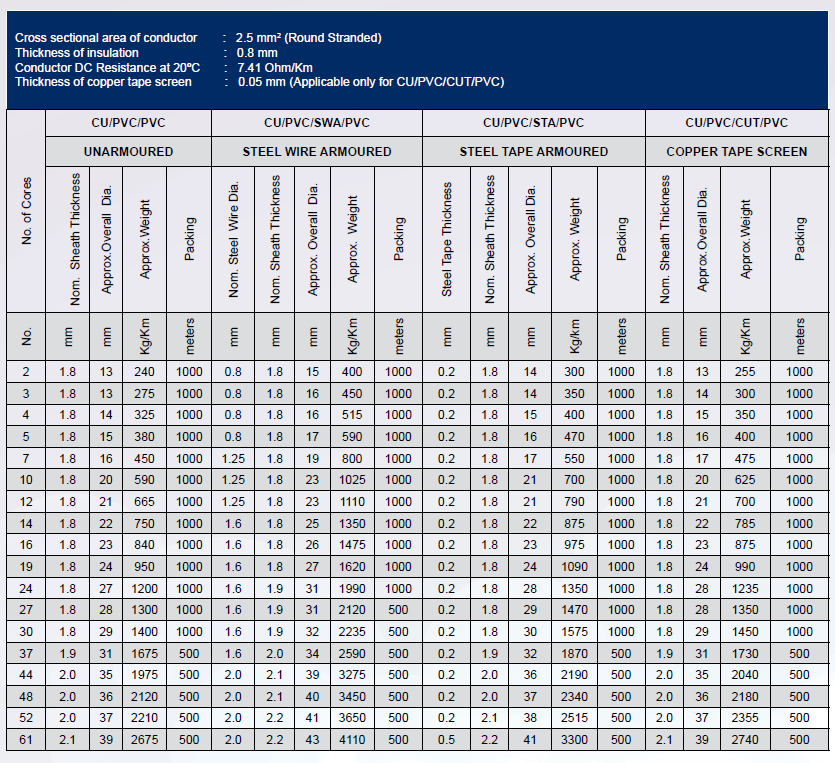

Control Cable Technical Date Sheets


product cable






0.6/1
kV LOW VOLTAGE CONTROL CABLES


PVC
OR XLPE INSULATED, PVC SHEATHED AS PER IEC 60502-1








Conductors


Conductors shall be Circular Stranded, Class
2 as per IEC 60228, BS EN 60228. Upon request, Solid Circular Conductor,


Class 1 as per IEC 60228, BS EN 60228 can be
supplied.






Insulation


XLPE material and thickness shall be as per
IEC 60502-1 rated 90ºC for continuous operation or


PVC Insulation Type A as per IEC 60502-1 or
TI1 as per BS 7655 rated 70 ºC for continuous operation.






Assembly


The Insulated Conductors are laid-up together
with non-hygroscopic fillers wherever necessary, the assembly is bedded


with an extruded layer of PVC. In case of
non-armoured cables, this layer may be omitted provided the outer shape of the


cable remains practically circular.






Standard

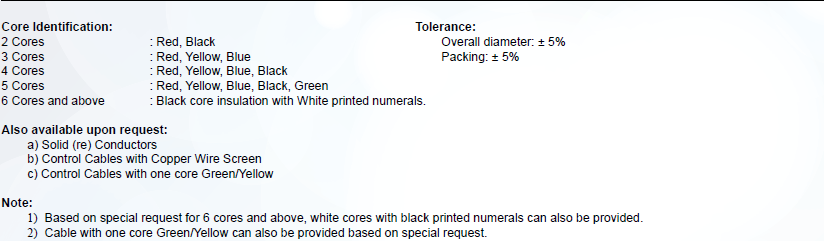

Colour Code


Single core : Red or Black


Two cores : Red, Black


Three cores : Red, Yellow, Blue


Four cores : Red, Yellow, Blue, Black


Five cores : Red, Yellow, Blue, Black, Green


Six cores & above : White numerals
printed on black core insulation.






Armour
(Optional)


• Galvanized Steel
Wires applied helically over the bedding as per IEC 60502-1 (or BS 5467, BS
6346 as per


customer
requirements).


• Double Steel
Tapes applied helically over the bedding as per IEC 60502-1.






Screening
(Optional)


• Copper Tape(s)
of nominal thickness 0.05mm applied helically with suitable overlap or as per
customer


requirement.


• Copper Wire
Screen (upon request) as per customer requirement.






Outer
Sheath


PVC Type ST2 as per IEC 60502-1 and Type 9 as
per BS 7655 coloured Black.






Application


Underground direct or indirect on cable tray.
