Find Wedge Type Insulated Anchor Clamp, Anchoring Tension Clamp Wedge Wire Clamp, Insulated Strain Cable Anchoring Clamp on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Home > Products > 6/10kv Power Cable > Strain Clamps For Insulated Cable

Strain Clamps For Insulated Cable

Strain Clamps For Insulated Cable

    Payment Type: L/C,T/T,Paypal
    Terms of Trade: FOB,CFR,CIF,FCA
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days
    Packaging: Standard Wooden Case
    Productivity: 14 million USD/per year
    Brand: Chuandu
    Transportation: Ocean,Land,Air
    Place of Origin: Yangzhou City Jiangsu province China
    Supply Ability: 10 million USD/per year
    Certificate: ISO9001 OHSAS18001
    HS Code: 7616991090
    Port: Shanghai Port

Basic Info

Model No.: NX

Product Description

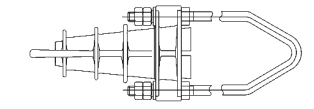

Strain Clamps For Insulated Cable

The strain clamp 1KV insulated wire

This series of products are mainly used in the voltage rating of 1KV and below power overhead insulated line. When the installation is not peeling wire insulation layer,and using the wedge clamping mechanism directly hold insulated wire,wire clip using tension bearing of insulated conductors.

wedge tension clamp

Catalog No.

Applicable Wire Type

Conductor Diameter

(MM)

Grip

(KN)

NX-35LY

JKLYJ-35

9.8

3.4

NX-50LY

JKLYJ-50

11.2

4.6

NX-70LY

JKLYJ-70

12.8

6.7

NX-95LY

JKLYJ-95

14.8

8.9

NX-120LY

JKLYJ-120

16.2

11.3

NX-150LY

JKLYJ-150

18.2

13.6

NX-185LY

JKLYJ-185

20.2

17.3

NX-240LY

JKLYJ-240

22.6

22.5

Anchoring Tension Clamp Wedge Wire Clamp


The strain clamp 10KV insulated wire

This series of products are mainly used in the voltage rating of 10KV and below power overhead insulated line. When the installation is not peeling wire insulation layer, and using the wedge clamping mechanism directly hold insulated wire, wire clip using tension bearing of insulated conductors.

Catalog No.

Applicable Wire Type

Conductor Diameter

(MM)

Grip

(KN)

NX-35LY-10

JKLYJ-35-10

15.8

3.4

NX-50LY-10

JKLYJ-50-10

17.1

4.6

NX-70LY-10

JKLYJ-70-10

18.8

6.7

NX-95LY-10

JKLYJ-95-10

20.4

8.9

NX-120LY-10

JKLYJ-120-10

21.8

11.3

NX-150LY-10

JKLYJ-150-10

23.4

13.6

NX-185LY-10

JKLYJ-185-10

25.0

17.3

NX-240LY-10

JKLYJ-240-10

27.2

22.5

Strain clamp for insulated wire

The strain clamp 20KV insulated wire

This series of products are mainly used in the voltage rating of 20KV and below power overhead insulated line. When the installation is not peeling wire insulation layer, and using the wedge clamping mechanism directly hold insulated wire, wire clip using tension bearing of insulated conductors.

Catalog No.

Applicable Wire Type

Conductor Diameter

(MM)

Grip

(KN)

NX-35LY-20

JKLYJ-35-20

20.0

3.4

NX-50LY-20

JKLYJ-50-20

21.3

4.6

NX-70LY-20

JKLYJ-70-20

23.0

6.7

NX-95LY-20

JKLYJ-95-20

24.6

8.9

NX-120LY-20

JKLYJ-120-20

26.0

11.3

NX-150LY-20

JKLYJ-150-20

27.6

13.6

NX-185LY-20

JKLYJ-185-20

29.2

17.3

NX-240LY-20

JKLYJ-240-20

31.4

22.5

Wedge Type Insulated Anchor Clamp


Our Factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link fitting; Protective Fitting; Preformed Fitting; Splicing Fitting; Cable Terminal, etc.

overhead transmission line fitting manufacturer

distribution line fitting supplier

Manufacturing Workshop

pole line hardware

line accessories

electric power fitting

electric power fitting




Jiangsu Chuandu Electrical Technology Co.,Ltd.



Jiangsu Chuandu Electrical Technology Co.,Ltd. is a manufacturer which is specialized in Electrical Power Fitting for 18 years.As an AAA Credit enterprise in Jiangsu province,the company was founded in 1999 with the registered capital reaching RMB 100 million Yuan.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations.In addition,it provides services for national power constructions and power supply departments in many provinces and cities.Locating in the industrial concentration district in Dinghuo town,Jiangdu district,Yangzhou of PRC,The company is adjacent to the Qiyang expressway and is next to the Yangzhou Taizhou Airport.The newly constructed plant covers an area of 41000㎡.

Jiangsu Chuandu Electrical Technology Co.,Ltd. possesses strong capacities,advanced testing equipment and first-class production equipment.Since its foundation,it has been persisting the principle of "customers oriented,and technology innovations dependent" and making endeavor introducing technical personnel and advanced equipment.With respect to the three-year goal set by the company,it aims to increase the proportion of the professional technical personnel to reach 20% of the total staff.It is worth mentioning that the company has passed International Standards Adoption Certification,International Quality System Certification(ISO914001), Occupational Health and Safety Management System Certification(OHSAS18001) and Energy Conservation Product Certification.Besides,it has acquired Production License of electrical fittings issued by the country as well as Metrology Accreditation Certification and Standardization Certification of the municipal level.

with the improvement of innovation patents and production and operation technologies as well as researches and developments of new technologies,Jiangsu Chuandu Electrical Technology Co.,Ltd. has gained self-support import and export rights.It operates marketing and sales both at home and abroad and exploits the international market gradually. On the basis of "innovation and integrity",the company extensively carries out management innovation and technology innovation,it aims to provide more satisfactory services to customer by high quality products.
