Aluminum Conductor Steel Reinforced Cable Conductor ACSR

  • Aluminum Conductor Steel Reinforced Cable Conductor ACSR
  • Aluminum Conductor Steel Reinforced Cable Conductor ACSR

Aluminum Conductor Steel Reinforced Cable Conductor ACSR

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 30 Days
    Packaging: Carton, Wooden case, Sack or as per customer's requirement
    Transportation: Ocean,Land
    Port: FUZHOU

Basic Info

Model No.: ACSR

Product Description

Aluminum Conductor Steel Reinforced cable conductor ACSR consists of a solid or stranded steel core surrounded by aluminum Electrical Wire (E.C. grade) and can be fabricated with ACSR conductors with a wide range of tensile strengths. The main advantages of aluminum to copper connectors are high tensile strength, light weight, long span and low support. Due to the large diameter of the ACS aluminum wire connectors , a higher corona limit can be obtained.

MAIN DIMENSIONS AND STANDARD PARTICULARS
Code Number Stranding&wire diameter Approx Overall diameter sectional Area Approx weight Breaking Load DC Resistance at 20
AL(mm) Steel(mm) mm Al(mm2) Steel(mm2) Total(mm2) kg/km KN Ohm/km
16 6/1.84 1/1.84 5.53 16 2.67 18.7 64.6 6.08 1.7934
25 6/2.3 1/2.30 6.91 25 4.17 29.2 100.9 9.13 1.1478
100 6/4.61 1/4.61 13.8 100 16.7 117 403.8 34.33 0.2869
125 18/2.97 1/2.97 14.9 125 6.94 132 397.9 29.17 0.2304
160 18/3.36 1/3.36 16.8 160 8.89 169 509.3 36.18 0.18
250 22/3.80 7/2.11 21.6 250 24.6 275 880.6 68.72 0.1154
400 54/3.07 7/3.07 27.6 400 51.9 452 1510.3 123.04 0.0723
450 54/3.26 7/3.26 29.3 450 58.3 508 1699.1 138.42 0.0643
500 54/3.43 7/3.43 30.9 500 64.8 565 1887.9 153.8 0.0578
560 54/3.63 19/2.18 32.7 560 70.9 631 2103.4 172.59 0.0516
630 54/3.85 19/2.31 34.7 630 79.8 710 2366.3 191.77 0.0459
710 54/4.09 19/2.45 36.8 710 89.9 800 2666.8 216.12 0.0407
800 72/3.76 7/2.51 37.6 800 34.6 835 2480.2 167.41 0.0361
900 72/3.99 7/2.66 39.9 900 39.9 939 2790.2 188.33 0.0321

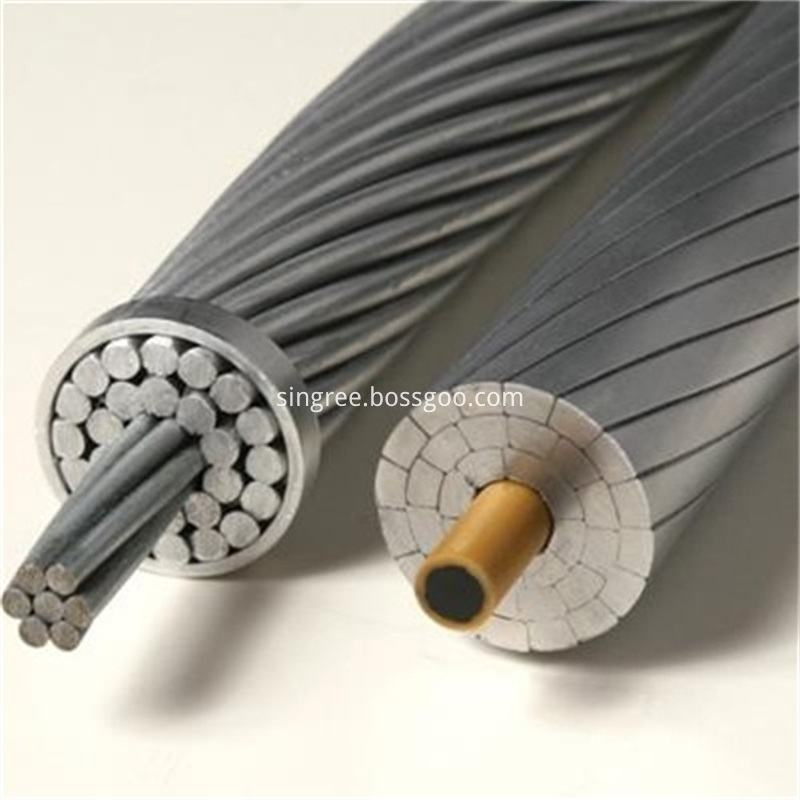

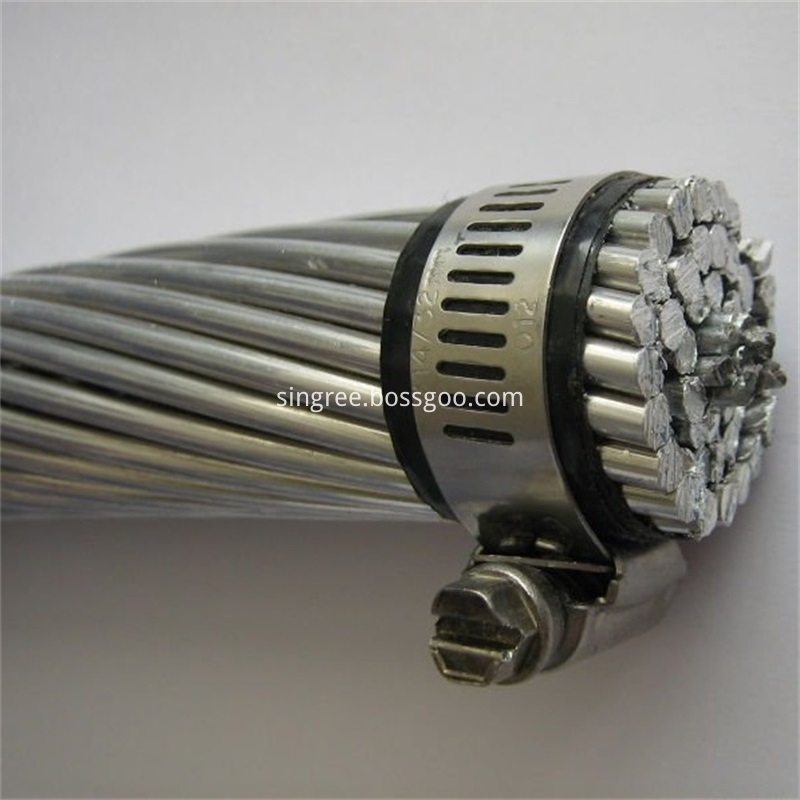

ACSR CableACSR

OUR SERVICES:

1. Small orders accepted
2. Fast producing time, prompt delivery
3. International approvals
4. Reply promptly in 24 hours
5. Best price

FAQ:

1. Q: How about payment terms ?

A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
2. Q: Do you have some videos where we can see the line producing ?
A: Yes, we can provide some videos for reference.
3. Q: Are you a Manufacture Factory ?
A: Yes. We are the direct manufacture factory, and our factory has specialized in porcelain insulator,composite insulator,glass insulator,arrester,cut out fuse, power fitting,etc.
4. Q: How long is producing time ?
A: Normally it will take about 30 days for production.
5. Q: What is the standard of package ?
A: For small capacity, we use carton, but for big capacity, we will use strong wooden case for protection or double inner packs in a master carton.
6. Q: How do you make sure your good quality ?
A: We use the best raw material , and every single product will go through a series of strict test.
